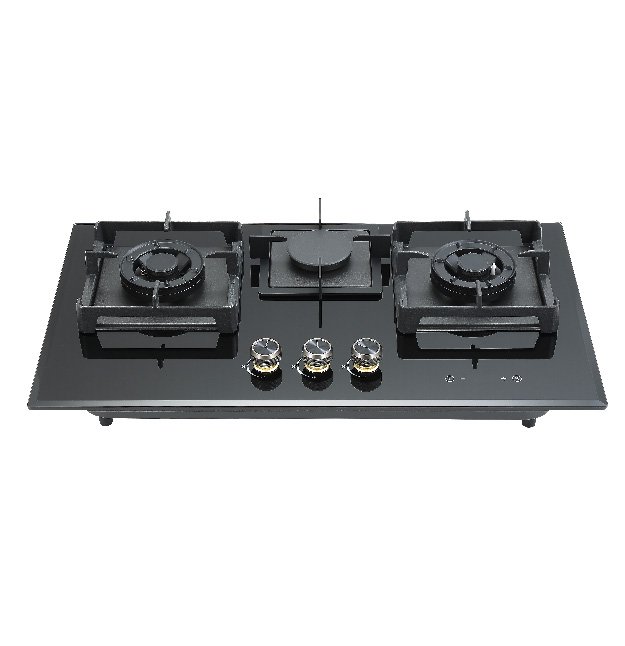

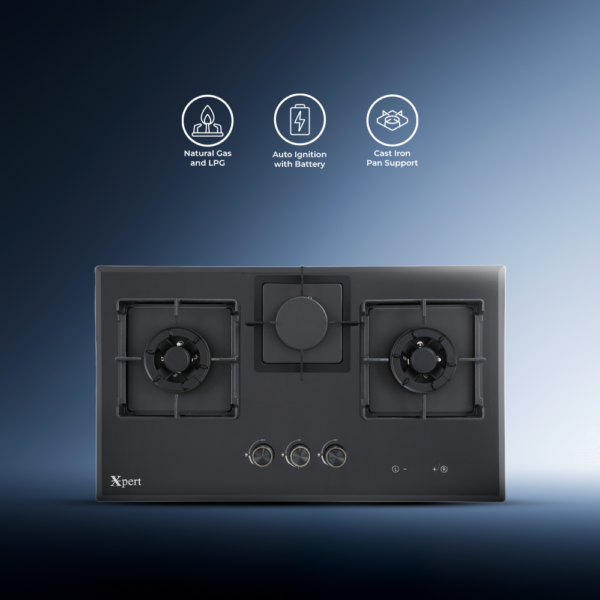

XGT-3-911
MODEL NO.
XGT-3-911
DIMENSIONS.
L 444mm | W 762mm
FINISHES.
Glass
FUEL TYPE.
Natural Gas & LPG
Stay Updated on Deals and News - Follow Us Today!
Tell Us How We Can Improve - Contact Customer Support!
Easy Returns for a Happy Shopping Experience!
Discover Quality Kitchen Appliances - Contact Us to Buy!
Front Control Panel
Front Control Panel
Auto-ignition System With Battery
Auto-ignition System With Battery
Water Sealed Brass Valve
Water Sealed Brass Valve
Knob Heat Defender
Knob Heat Defender
DESCRIPTION
OVERALL DIMENSIONS
Width : 444mm
Length 762mm
Please refer to the Installation Instructions for more detailed dimensions.
BURNER CONFIGURATION
Burner Power: 3.3 kw
REQUIREMENTS
Gas Pressure: 0.25 to 0.5 pounds per square inch (psi). Connection: 8mm Copper pipe.
CONFIGURATIONS
FEATURE
Tempered Glass
Liquid Proof Brass Burner
Delay-Timer With Gas Safety Lid
Front Control Metallic Knob With Soft Rubber Touch
Square Shape Cast-iron pan support
Knob Heat Defender
Auto-Ignition System With Battery
Natural Gas & LPG
Water Sealed Brass Valve
TECHNICAL INFORMATION
Three Gas Burner (Full Brass) 1 x Burner Power 5.2 kw 1 x Burner Power 2.0 kw 1 x Burner Power 5.2 kw Brass Gas Piping
PRECAUTIONS
1. Check for gas leaks regularly using a gas leak detector solution.
2. Measure the size precisely in inches for cutting.
3. Don't put the pan upside-down on the glass hob to avoid damage.
4. Let the hob cool before cleaning to avoid damage.
5. Regularly clean the glass surface with a soft cloth and mild cleaner.
6. Wipe the hob regularly with a damp cloth to prevent buildup.
DIMENSION CHART
